Product Details
＋
DESCRIPTION
SNOW PLOW

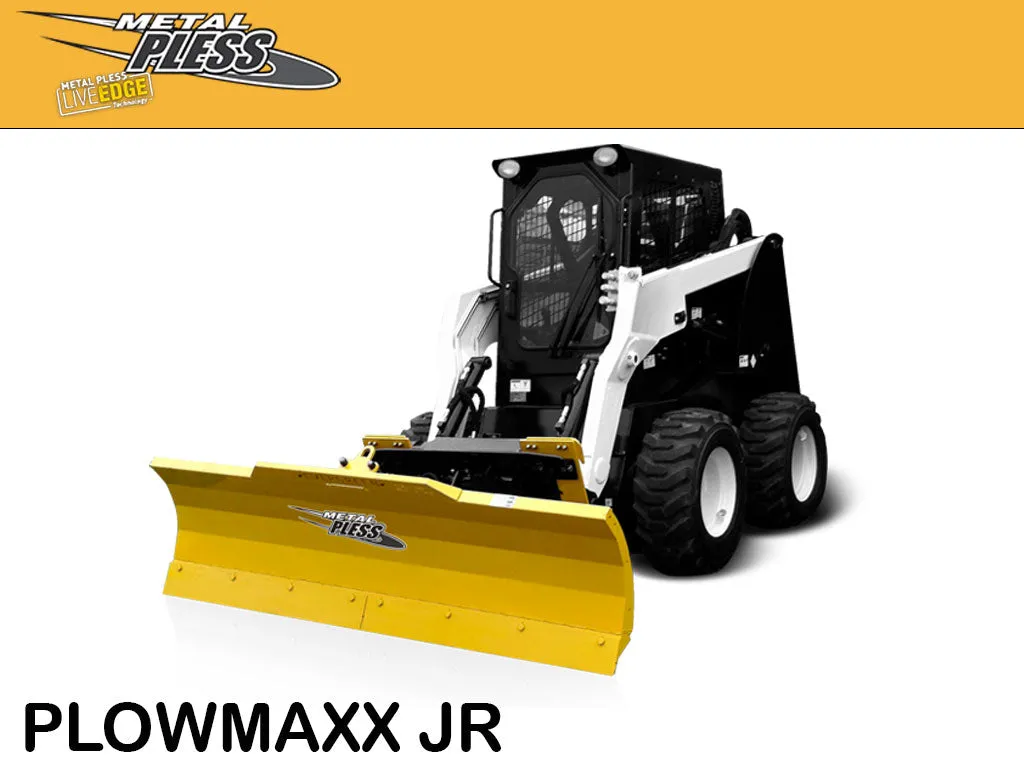

PLOWMAXX JR

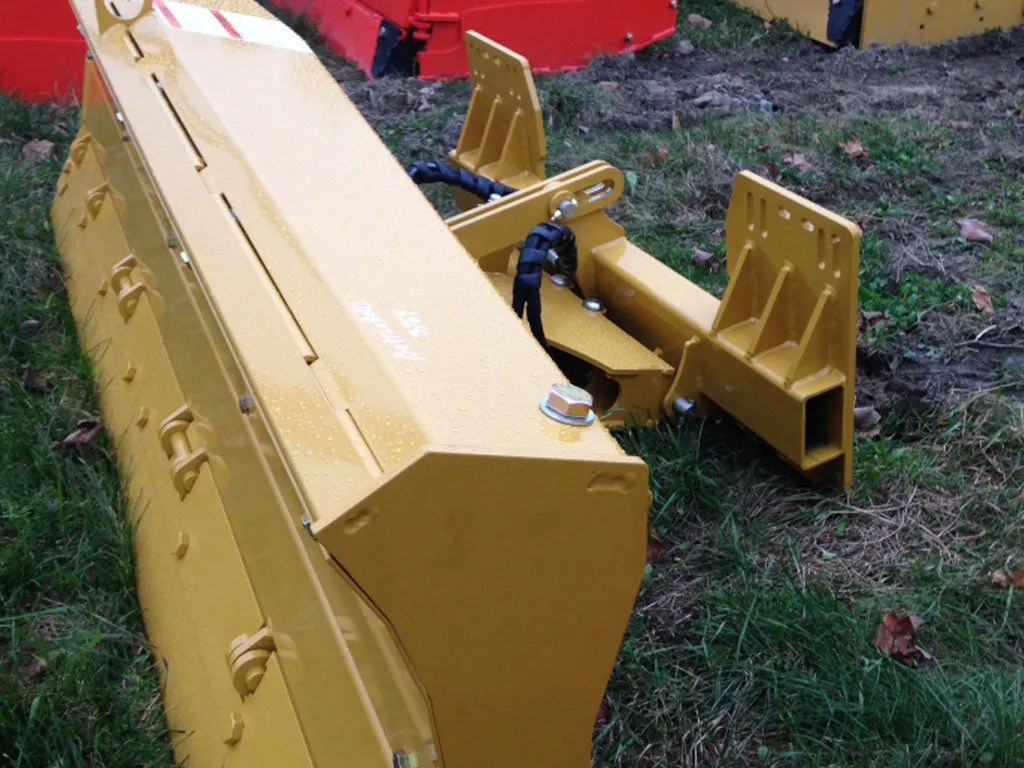

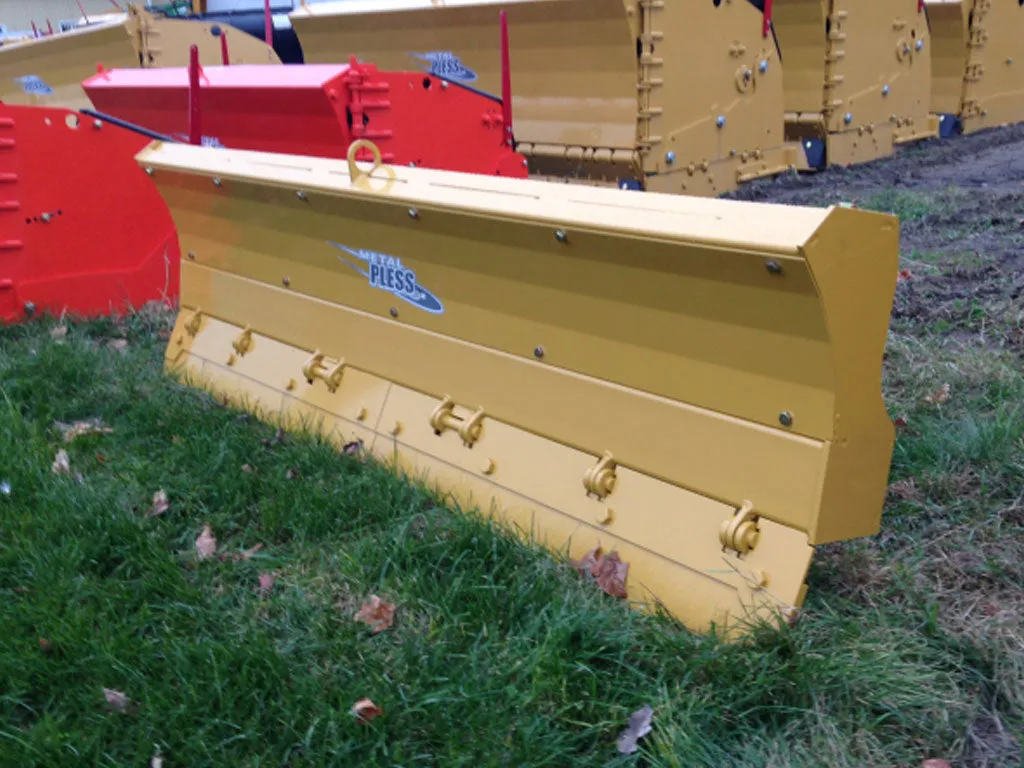

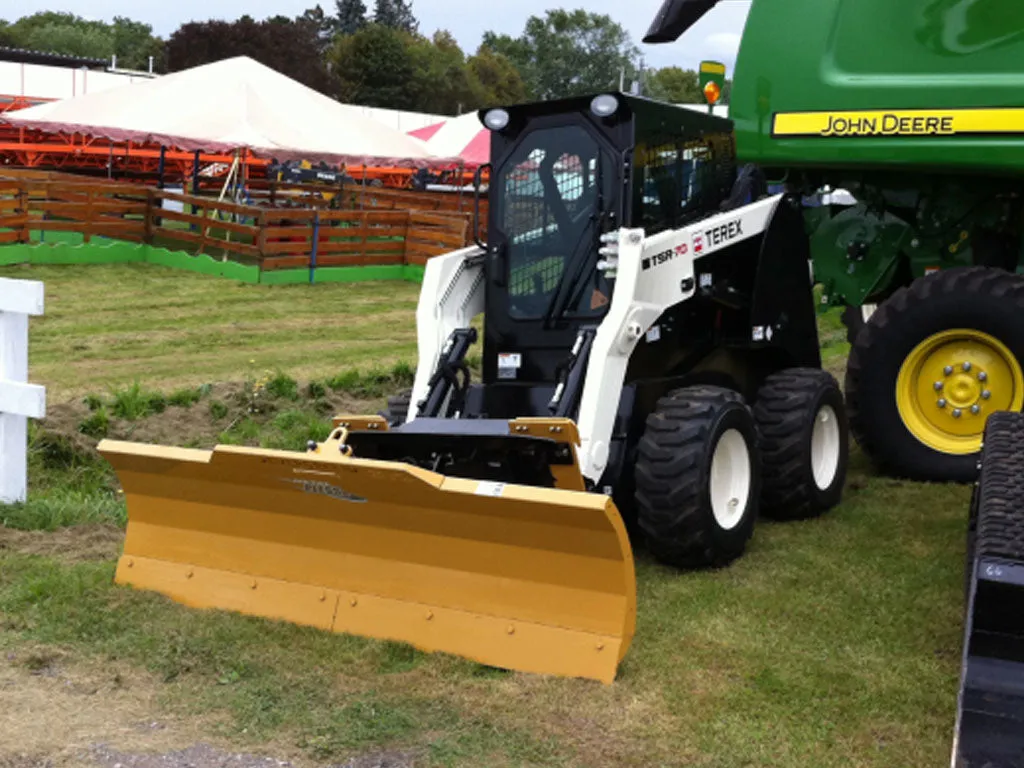

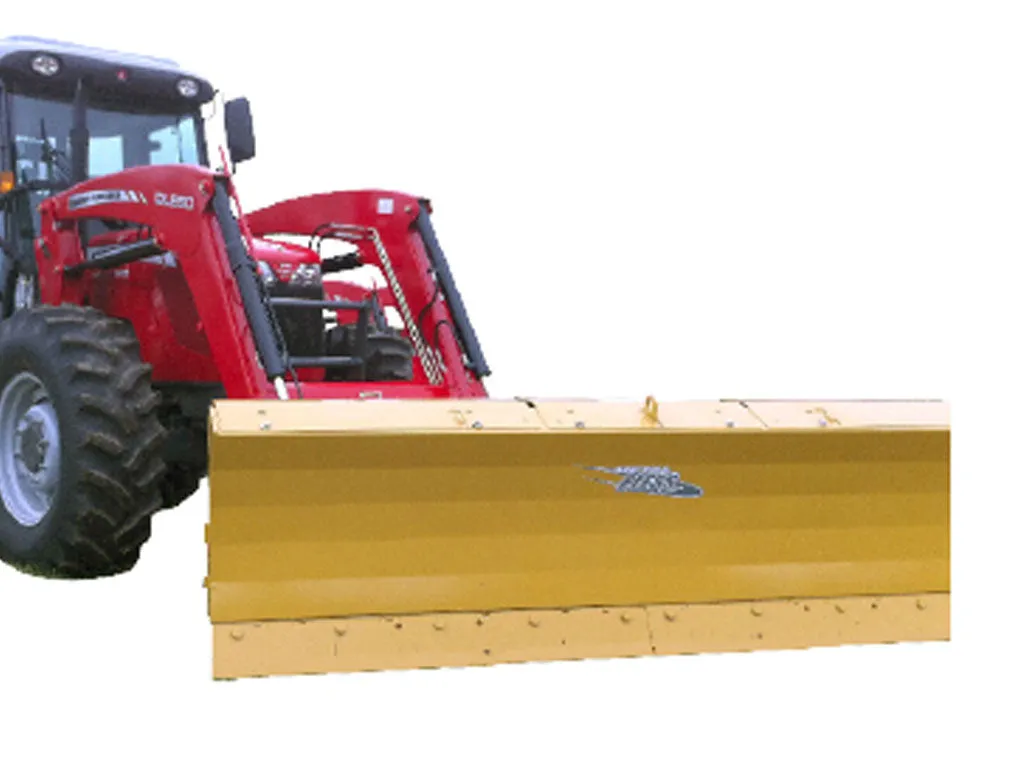

Snow plow with hydraulic angle. The PlowMaxx JR can be installed on a skid steer, backhoe or wheel loader.
FEATURES - Plowmaxx JR
- Adjustable angulation of the blade
- "Heavy duty" CHT400 steel cutting edge ½’’ x 6’’ (Std)
- Full tripping system of the blade (PLjr models, Std)
- "Heavy duty" multi-section mechanical trip edge ½’’ x 6" (PLSO models, Std)
- SOFT drive mechanical steel trip edge, "Heavy duty" multi-section ½" x 6" (HD)
- Mobile steel trip edge following the imperfection of roads, exclusive Metal Pless system, reduces up to 50% the use of salt and abrasives (LE)
- Carbide cutting edge (LE)
- Adjustable crossover relief valve for hydraulic protection
- Lateral floating of the blade
- Baked powder paint
- This system requires 1 set of oil outlets
AVAILABLE OPTIONS - Plowmaxx JR
- Teflon cutting edge ¾’’ x 6’’
- Carbide cutting edge
- Non standard color
- Quick attach
SPECS
| Model | Width | Height | Application | Approx. weight |
| PLJR 527 | 5' | 27" | 30 - 40 HP | 460 lbs |
| PLJR 627 | 6' | 27" | 30 - 50 HP | 500 lbs |
| PLJR 727 | 7' | 27" | 40 - 60 HP | 560 lbs |
| PLJR 827 | 8' | 27" | 50 - 70 HP | 635 lbs |
| PLSO 730 | 7' | 30" | 60 - 70 HP | 925 lbs |
| PLSO 830 | 8' | 30" | 70 - 80 HP | 975 lbs |
| PLSO 930 | 9' | 30" | 80 - 90 HP | 1025 lbs |
| PLSO 1036 | 10' | 36" | 80 - 100 HP | 1650 lbs |
| PLSO 1236 | 12' | 36" | 100 HP and up | 1950 lbs |
| PLSO 1242 | 12' | 42" | 125 HP and up | 2375 lbs |
